Shipping on this item will be quoted and billed separately. We will reach out to you to estimate a lead time and make shipping arrangements.

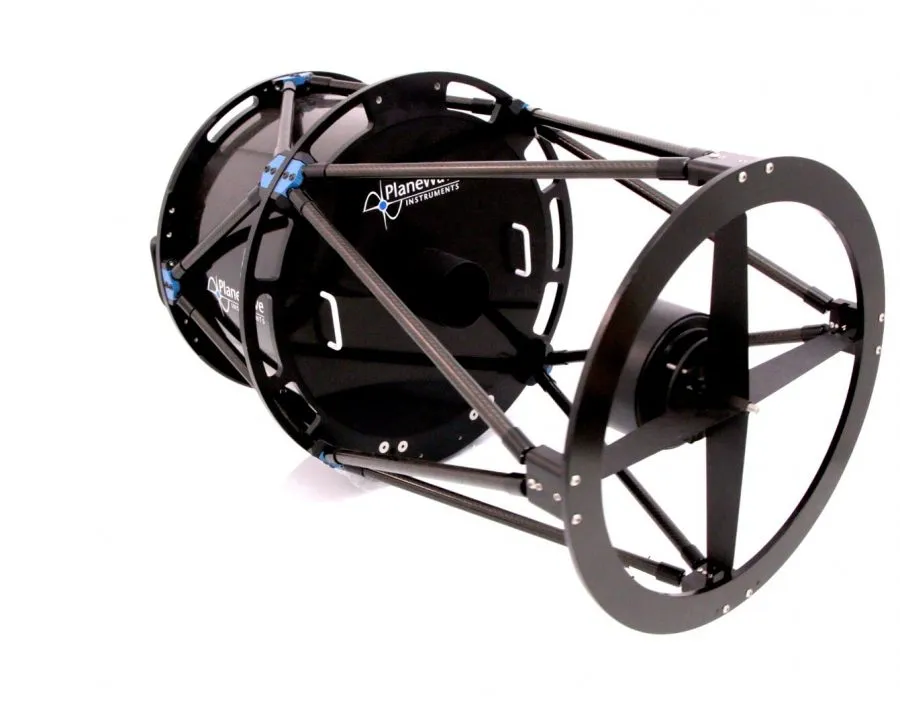

The IRDK17 is a 17-inch infrared optimized optical tube designed for research applications where on-axis performance is crucial.
- Dall-Kirkham optical design
- Focal length of 2,939 mm (f/6.8)
- Mirror coatings that are optimized to transmit in infrared wavelengths (ultra violet optimization available)
- Fused silica mirrors with low thermal expansion
- Ready for Delta-T dew prevention
Description
This is a Dall-Kirkham optical design with coatings that are optimized to transmit in infrared wavelengths. There are no refractive lens, only reflective components to the design. For IR application, reflective coatings are a protected gold which give better than 98% reflectivity from .65 micron (650nm) to 5 micron (5000nm). This design is ideal for infrared astronomy or LIDAR applications. UV optimized coatings can be provided as well, so please reach out to our technical sales team to discuss UV optimization.
- IRDK17 is a 17 inch infrared optimized optical tube with fused silica mirrors
- Focal length of 2,939 mm (f/6.8)
- Dall-Kirkham optical design with coatings that are optimized to transmit in infrared wavelengths (ultra violet optimization available)
- Ready for Delta-T dew prevention
